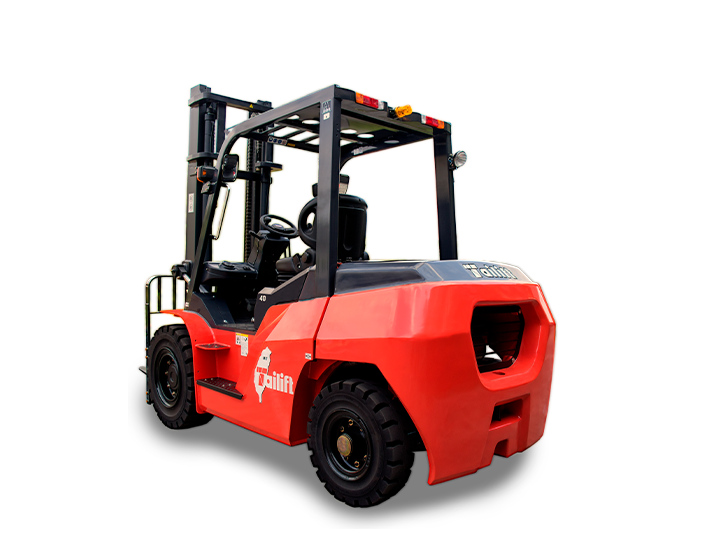

Z1000 4.0-5.0T
Z1000 4.0-5.0T
Internal Combustion Pneumatic Tire Forklift
ZFD40/ ZFD45/ ZFD50
Easy Operation
Multifunctional Instrument Panel

Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.

Adjustable Steering Wheel Column

The easy-handling steering wheel column with tilt adjustment helps to provide the ideal operating position and improve performance.

Electric F/R Control Lever

Integral forward/reverse & direction lever offers easy shifting between forward and reverse while keeping both hands on the wheel. It is easy to reach and fast to change direction.

High Stability
Electric Parking Brake

The parking brake has safety protection switch, in order to avoid the touch accident and to ensure the safety, it is necessary to release the parking brake; otherwise, the truck can’t be moved.

High Mounted Combination Rear Lights

Integral OHG light include side, reverse, rear lights, brake and direction indicators.

Large Front Lights

Integral head light and side lights.

Integral Heavy Duty Chassis

A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads,suite for all kind working surface.

Great Performance
TNA Automatic Transmission
  • The floating transmission design reduce to the vibration and noise. It provides the operator better operation space.
  • The wet disc system install in the drive axle and it is suitable for various poor working condition.
  • The TNA transmission is not effected by dust. It is no need to adjust the gap and not easy to oil leak.
Oil-immersed Disc Brake
Multi-disc Clutch
High Performance Low Fuel Consumption Engines

The strong but low emission engine will satisfy the operators in any given circumstance, time and time again. Using high performance and low fuel consumption engines include Nissan, and Perkins engines. All engines meet latest emission regulations.

Internal Hidden Tilt Cylinder

Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.

Non-Slip Entry Step

Large foot space and non-slip make the operator get on and get off the vehicle more easily.

Hydraulic Control Levers

The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.

Forward & Backward Visibility
Comfortable Seat
  • Ergonomic sharp design and adjustable backrest
  • Adjustable forward and reverse
  • Retractable safety belt
  • Document bag
Spacious Operation Space

Accelerate/Brake/ Inching pedal all configurations with ergonomic design. Wide-open foot space provides the comfortable foot activity space.
The enlarged space give operator great comfortable and less stress, make the operator get on or get off the vehicle more easily.


Please Select to Compare

Load capacity 4000 kg 4500 kg 5000 kg 5000 kg
Length (w/o forks) 3125 mm 3175 mm 3325 mm 3325 mm
Width 1450  mm 1450 mm 1450 mm 1450 mm
Height (overhead guard) 2285 mm 2285 mm 2285 mm 2285 mm
Travel speed (laden) 25 km/h 24 km/h 21.5 km/h 23 km/h
Travel speed (unladen) 26 km/h 26.5 km/h 27 km/h 26 km/h
Lift speed (laden) 400 mm/s 400 mm/s 440 mm/s 400 mm/s
Lift speed (unladen) 417 mm/s 417 mm/s 437 mm/s 417 mm/s
Turning radius 2770 mm 2820 mm 2970 mm 2970 mm
Controller N/A N/A N/A N/A
Rated output / Speed 55.4 @2500 kW/rpm 55.4 @2500 kW/rpm 63@ 2300 kW/rpm 55.4 @2500 kW/rpm
Battery (min.capacity) N/A N/A N/A N/A

Dual Wheel

Upward Exhaust Pipe l

Mast Lock

Rain Guard (Standard: Acrylics; Option: Glass)

Climate Controlled Full Cabin

Pre-Cleaner Engine Air Intake

Side Shift

Hinged Fork

Rotating Fork


Bale Clamp
