The easy-handing steering wheel provides the ideal operating positions and improves performance. Assist knob is help operator more easy to control.
A large and easy to see multifunction & compact instrument panel is perfectly in front of the operator. Three different operating modes are available for operator. Also feature with automatic detecting mistake and alarm message on display.

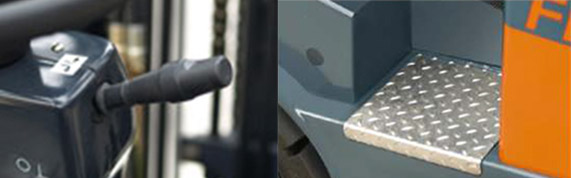

A low step height and secure surface provide operator safe entry and exit.
Hydraulic steer axle offer high steer angles with exceptional durability and lower maintenance cost.
Ergonomic design of the hydraulic control lever. The lifting and tilting function integrated in the mini lever as option, enable a quick direction and operation.
Full AC controller features with sensitive responding, low maintenance and noise. Wet disc brake offer great friction coefficient and long working life.
AC hydraulic pump motor can be adjusted to low speed of output and provide sufficient power for turning and hydraulic function. It is a smooth, sensitive, no brush and quicker response.
High mounted rear combination lights which improved visibility in the working place.
Wide front vision mast extends visual ability while operating the mast. Better visibility brings greater safety and maximum productivity.
Deluxe suspension seat gives you the very best in customized comfort and safe. Flat and wide floor and enough headspace will obtain operator while driving. Cup base built in cup base is easy for operator to access drinks.
Please Select to Compare
|Load capacity||1500 kg||1800 kg||2000 kg||2500 kg||3000 kg|
|Length (w/o forks)||2095 mm||2095 mm||2330 mm||2330 mm||2450 mm|
|Width||1115 mm||1115 mm||1200 mm||1200 mm||1260 mm|
|Height (overhead guard)||2040 mm||2040 mm||2150 mm||2150 mm||2150 mm|
|Travel speed (laden)||11.5 km/h||13 km/h||12.5 km/h||12 km/h||12 km/h|
|Travel speed (unladen)||12.5 km/h||14 km/h||14 km/h||14 km/h||15 km/h|
|Lift speed (laden)||320 mm/s||300 mm/s||310 mm/s||290 mm/s||260 mm/s|
|Lift speed (unladen)||470 mm/s||470 mm/s||500 mm/s||500 mm/s||450 mm/s|
|Turning radius||1860 mm||1860 mm||2075 mm||2195 mm||2195 mm|
|Rated output / Speed||N/A||N/A||N/A||N/A||N/A|
|Battery (min.capacity)||470 AH/5HR||460 AH/5HR||700 AH/5HR||700 AH/5HR||560 AH/5HR|
