A large and easy-to-see multifunctional display is perfectly centrally located in front of the eye of the operator. This new multifunctional panel provides all information necessary for the operator and service maintenance.
The forward/reverse lever offers easily accessible fingertip control. It is easy to reach and also for fast and easy directional changes. Using the electric solenoid to control F/r is also improved flexibility of operation.
The lever is integrated into the electric F/R lever. It is combination of light switch and turn signal.

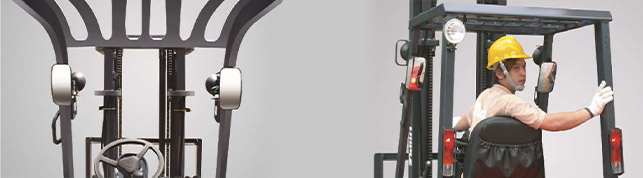

The steering column can be adjusted help to provide the preferred driving position.
No-bolt completely welds to form a one piece of rigid overhead guard and chassis. This one piece construction gives additional strength to the entire structure. This structure allows truck to be use on uneven surfaces for long working period and not bend.
The mast lock system automatically locks all lifting and tilting functions when the operator leaves the seat. It is to prevent operator from using the hydraulic functions and drive forklift truck when operators is not seat in proper position.
The cylinder has been new design by adding safety check valve to absorb mast drop speed automatically to avoid crashed floor and damage goods, also reduced noise.
MD series transmission 1.5~3.5T with single-speed and 4-5T with two speed forward & reverse, hydrodynamic transmission perfectly tuned, allows the best precision and smoothness in handling activities. The electric F/R lever gives the operator easy directional control without removing a hand from the steering wheel.
The great durability new rear axle, increased steer angle and steering control for easy manicuring and lower maintenance.
Mini Lever (Optional)
The lifting and tilting function integrated in the mini lever enables a quick direction and operation. This guarantees fast maneuverable operation.
Grammer suspension seat give you the very best in customized comfort and safe, healthy posture. Features with ergonomic sharp design, suspension travel to accommodate operator weight, generous Fore/Aft, seat belt and seatback angle adjustment to optimize your comfort, posture and performance.
Quick, tool-free access to the engine compartment below the floor boards saves time during regular servicing.
The engine cover has a gas-filled cylinder with an automatic locking device to assist in opening and locking open the cover. Easy service access reduces maintenance time and expense. With the cover locked open, your technicians have easy access to all service points.
Tailift forklifts use industry-standard engines that are engineered to be LOW EMISSION and LOW NOISE to protect your working environment. All diesel, gasoline and LPG engines are environmentally friendly with advanced combustion technology for reduced fuel consumption. All engines meet and comply with the EU stage III and US EPA tier III regulations of Directive 97/68.
We use all world well know engine include Japanese Isuzu, Yanmar
|Model Engine||FD18 / 20||FD25||FD30 / 35||FG18 / 20||FG25||FG30||FG35||FD18C / 20C||FD25C||FD30C / 35C||FG18C / 20C||FG25C||FG30C /35C|
Please Select to Compare
|Load capacity||1500 kg||1800 kg||1800 kg||2000 kg||2000 kg||2000 kg||2000 kg||2500 kg||2500 kg||2500 kg||2500 kg||3000 kg||3000 kg||3000 kg||3500 kg||3500 kg||3500 kg|
|Length (w/o forks)||2235 mm||2280 mm||2280 mm||2460 mm||2460 mm||2460 mm||2460 mm||2505 mm||2505 mm||2505 mm||2505 mm||2600 mm||2600 mm||2600 mm||2600 mm||2600 mm||2600 mm|
|Width||1065 mm||1065 mm||1065 mm||1158 mm||1158 mm||1158 mm||1158 mm||1158 mm||1158 mm||1158 mm||1158 mm||1290 mm||1290 mm||1290 mm||1290 mm||1290 mm||1290 mm|
|Height (overhead guard)||2090 mm||2090 mm||2090 mm||2130 mm||2130 mm||2130 mm||2130 mm||2130 mm||2130 mm||2130 mm||2130 mm||2170 mm||2170 mm||2170 mm||2170 mm||2170 mm||2170 mm|
|Travel speed (laden)||16 km/h||16 km/h||16 km/h||17 km/h||17 km/h||16 km/h||17 km/h||17 km/h||17 km/h||16 km/h||17 km/h||17 km/h||16 km/h||17 km/h||16 km/h||16 km/h||16 km/h|
|Travel speed (unladen)||17 km/h||17 km/h||17 km/h||18 km/h||18 km/h||17 km/h||18 km/h||18 km/h||18 km/h||17 km/h||18 km/h||18 km/h||18 km/h||18 km/h||18 km/h||17 km/h||18 km/h|
|Lift speed (laden)||686 mm/s||500 mm/s||676 mm/s||500 mm/s||550 mm/s||591 mm/s||600 mm/s||480 mm/s||530 mm/s||591 mm/s||600 mm/s||420 mm/s||505 mm/s||441 mm/s||410 mm/s||505 mm/s||410 mm/s|
|Lift speed (unladen)||714 mm/s||540 mm/s||714 mm/s||540 mm/s||650 mm/s||615 mm/s||682 mm/s||540 mm/s||650 mm/s||615 mm/s||682 mm/s||540 mm/s||423 mm/s||464 mm/s||540 mm/s||425 mm/s||540 mm/s|
|Turning radius||1950 mm||1995 mm||1995 mm||2170 mm||2170 mm||2170 mm||2170 mm||2250 mm||2250 mm||2250 mm||2250 mm||2415 mm||2415 mm||2415 mm||2615 mm||2615 mm||2615 mm|
|Rated output / Speed||34.2@2450 kW/rpm||34.3@2500 kW/rpm||34.2@2450 kW/rpm||34.3@2500 kW/rpm||44.9@2450 kW/rpm||34.2@2450 kW/rpm||44.1@2725 kW/rpm||34.3@2500 kW/rpm||44.9@2450 kW/rpm||34.2@2450 kW/rpm||44.1@2725 kW/rpm||44.9@2450 kW/rpm||34.2@2450 kW/rpm||44.1@2725 kW/rpm||44.9@2450 kW/rpm||34.2@2450 kW/rpm||44.1@2725 kW/rpm|
